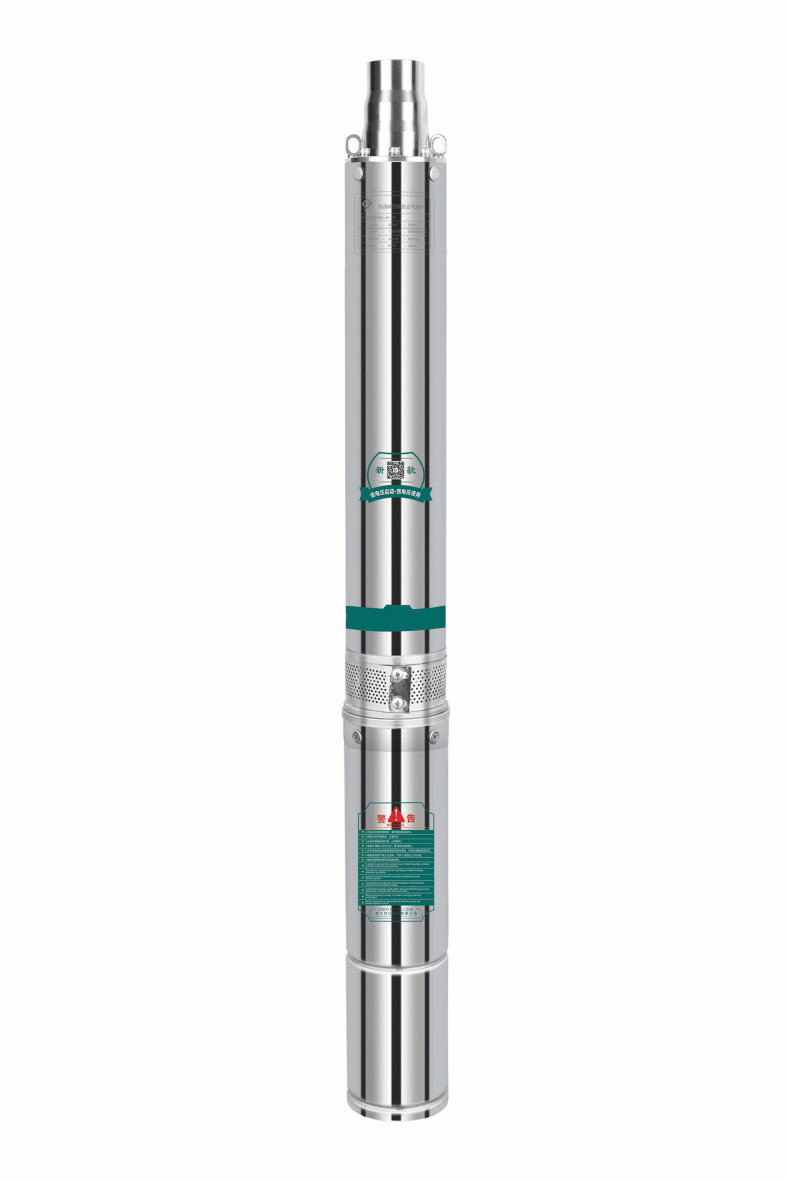

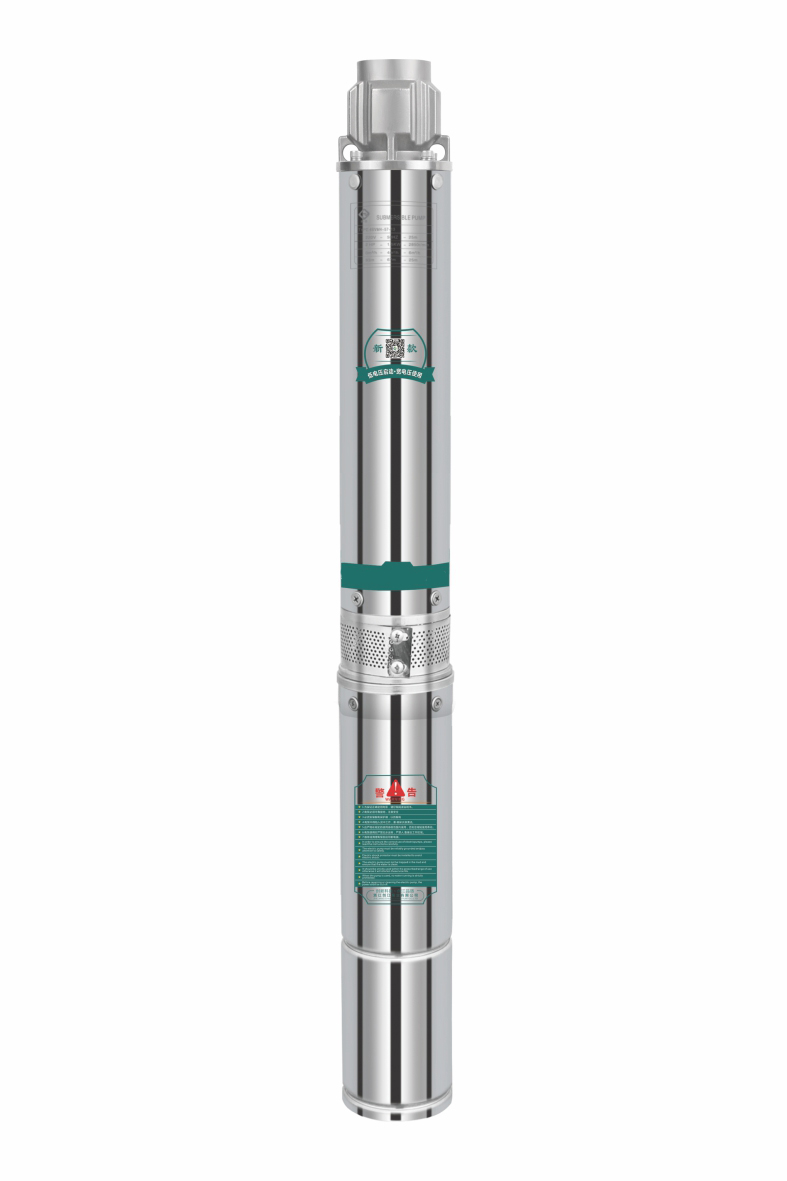

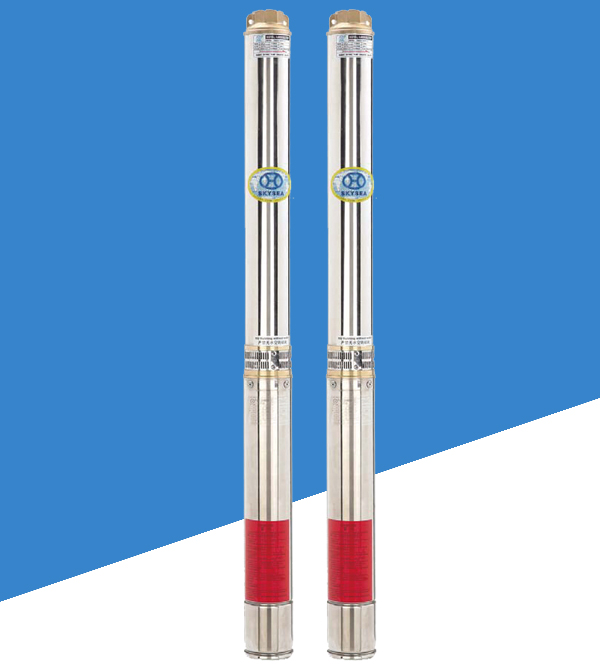

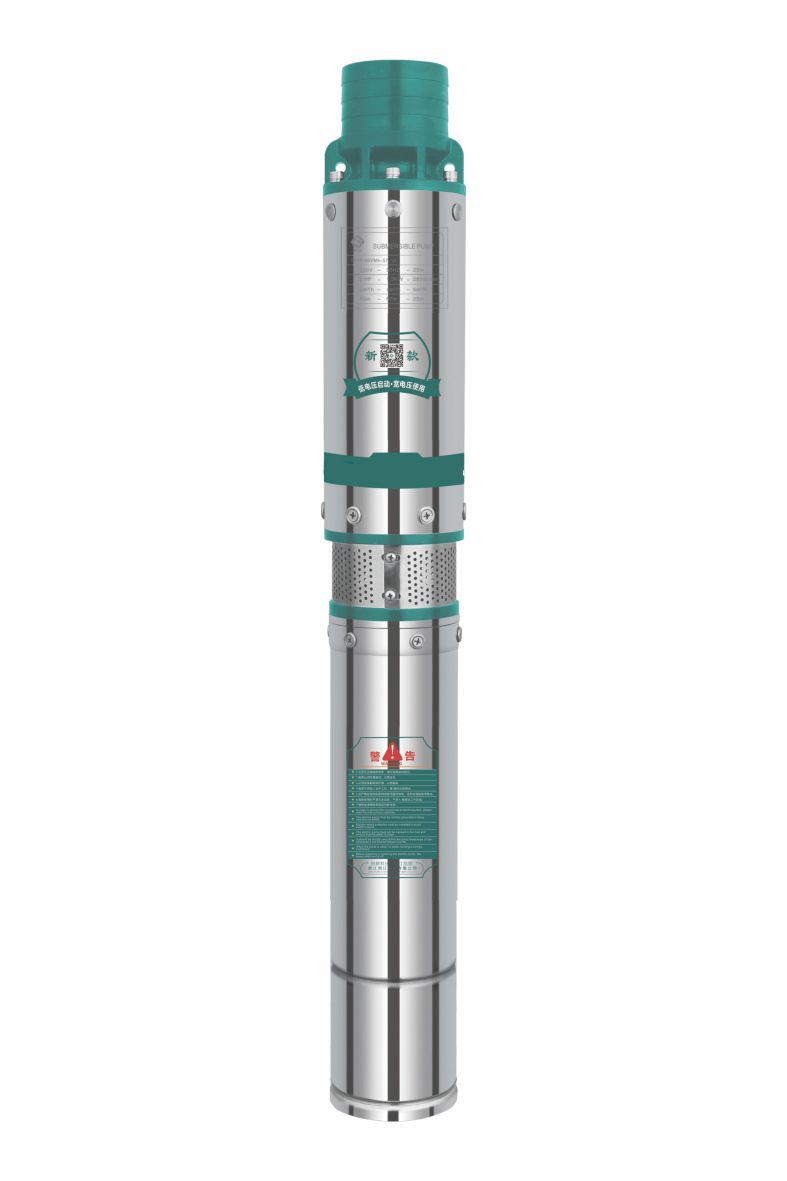

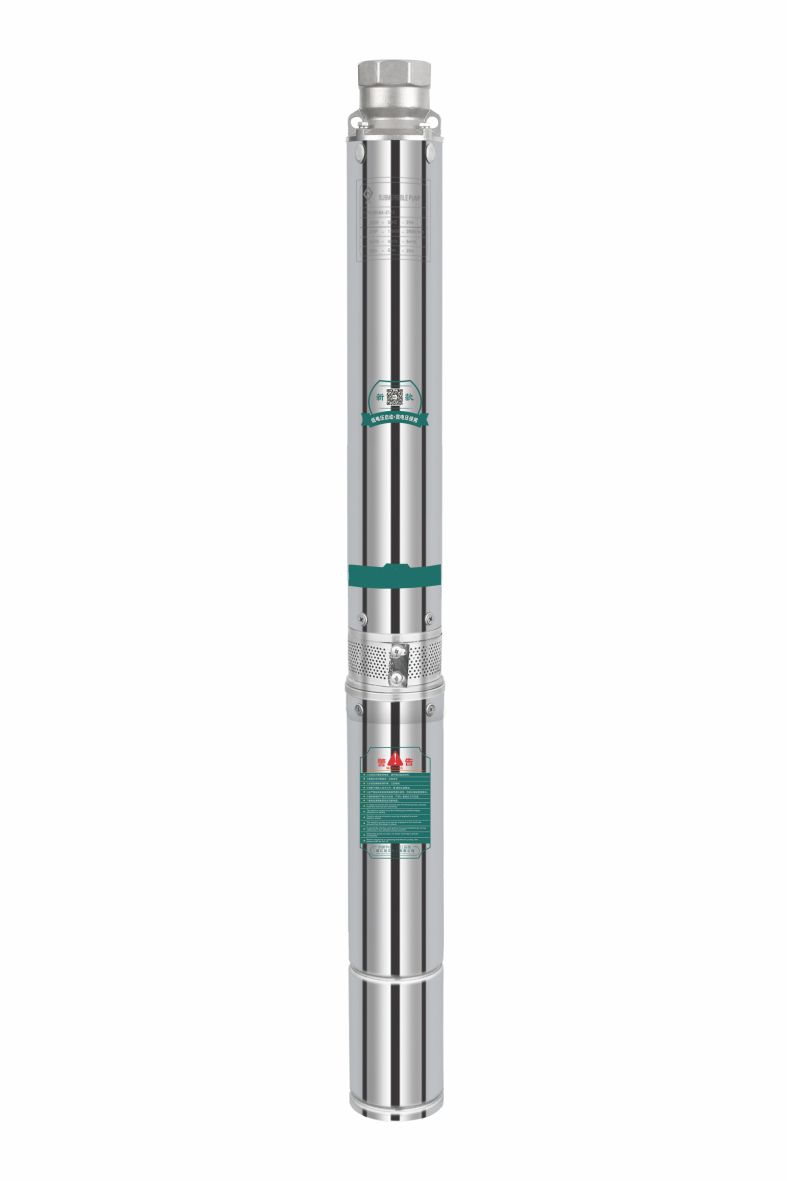

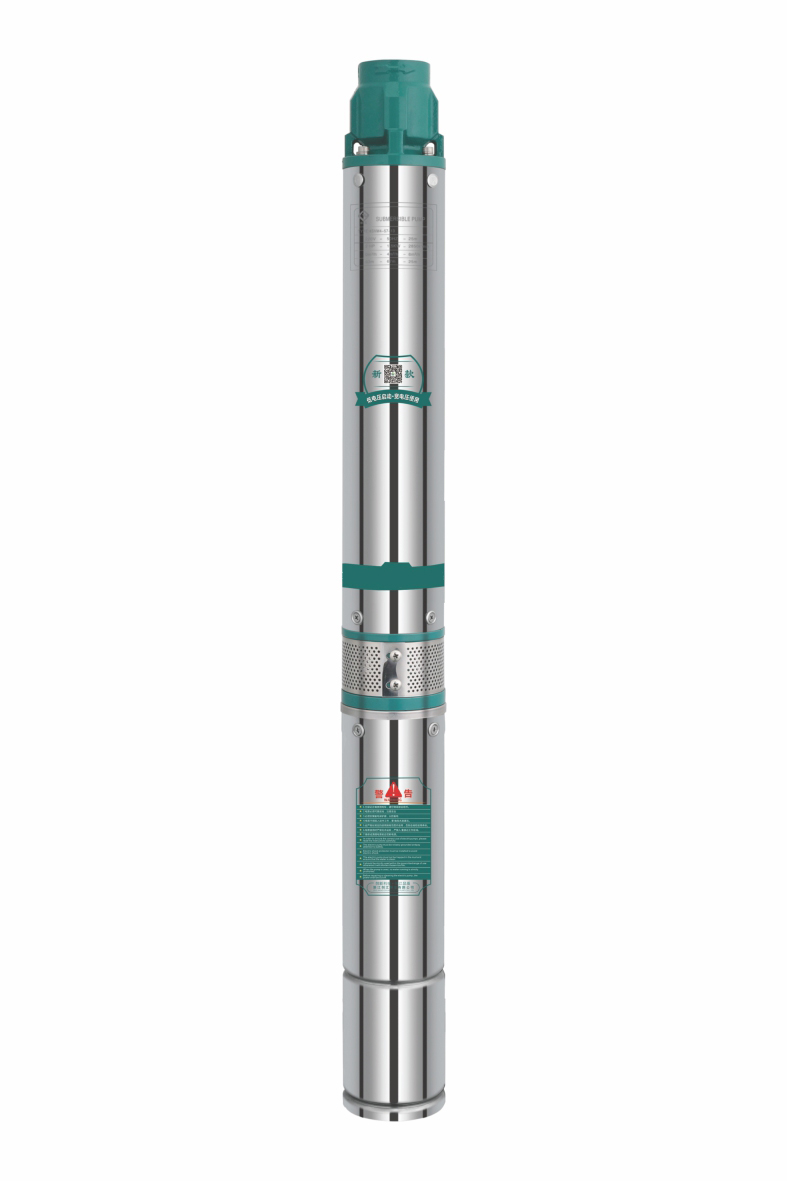

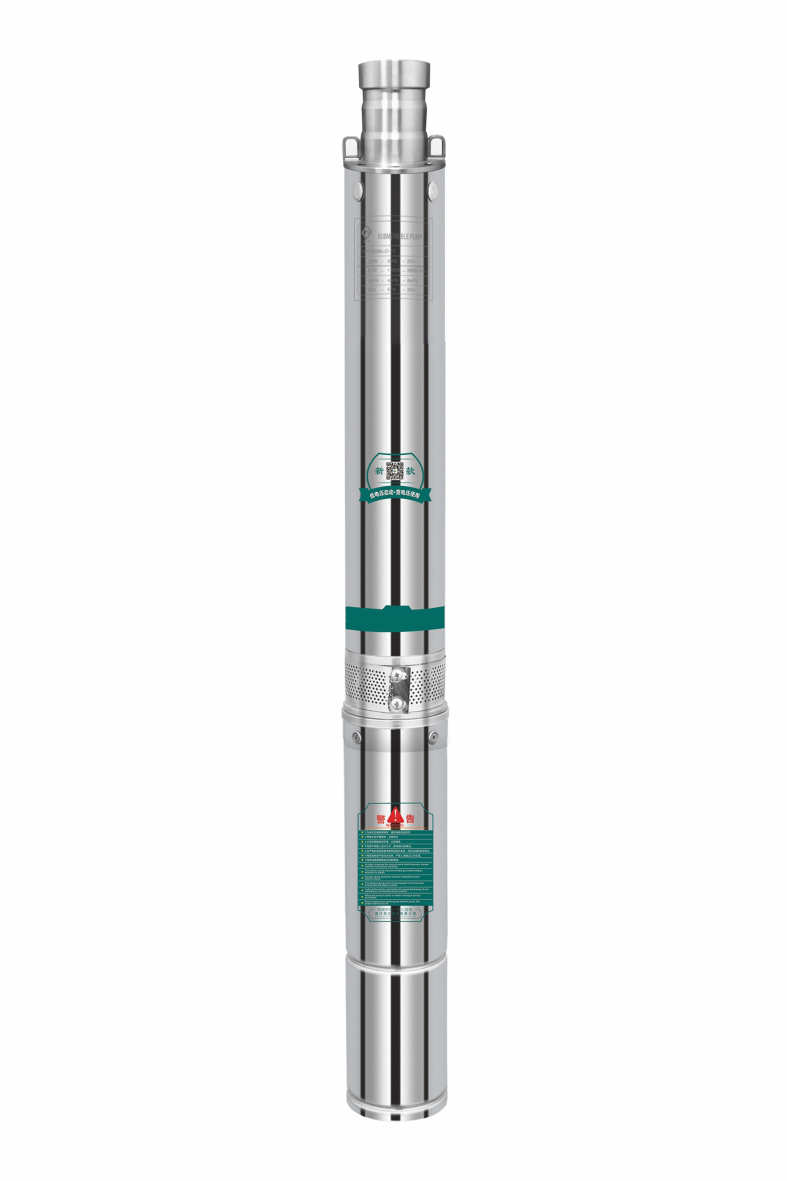

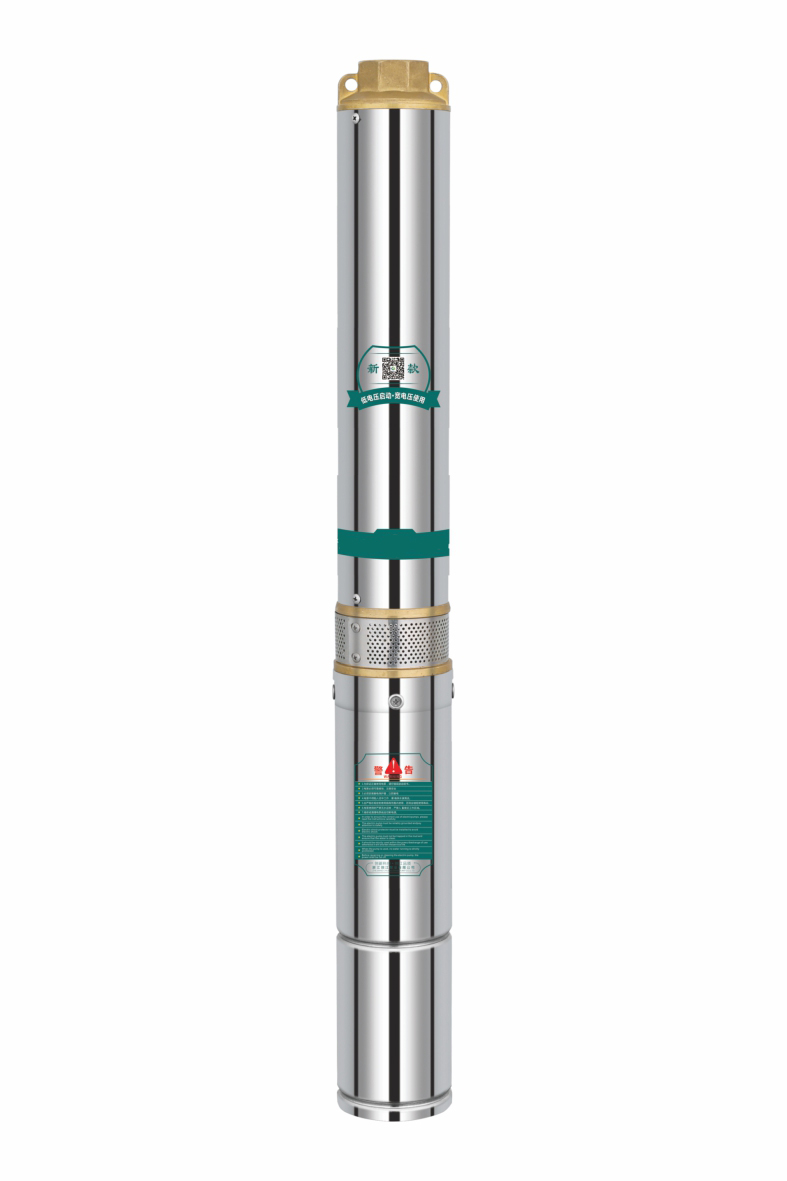

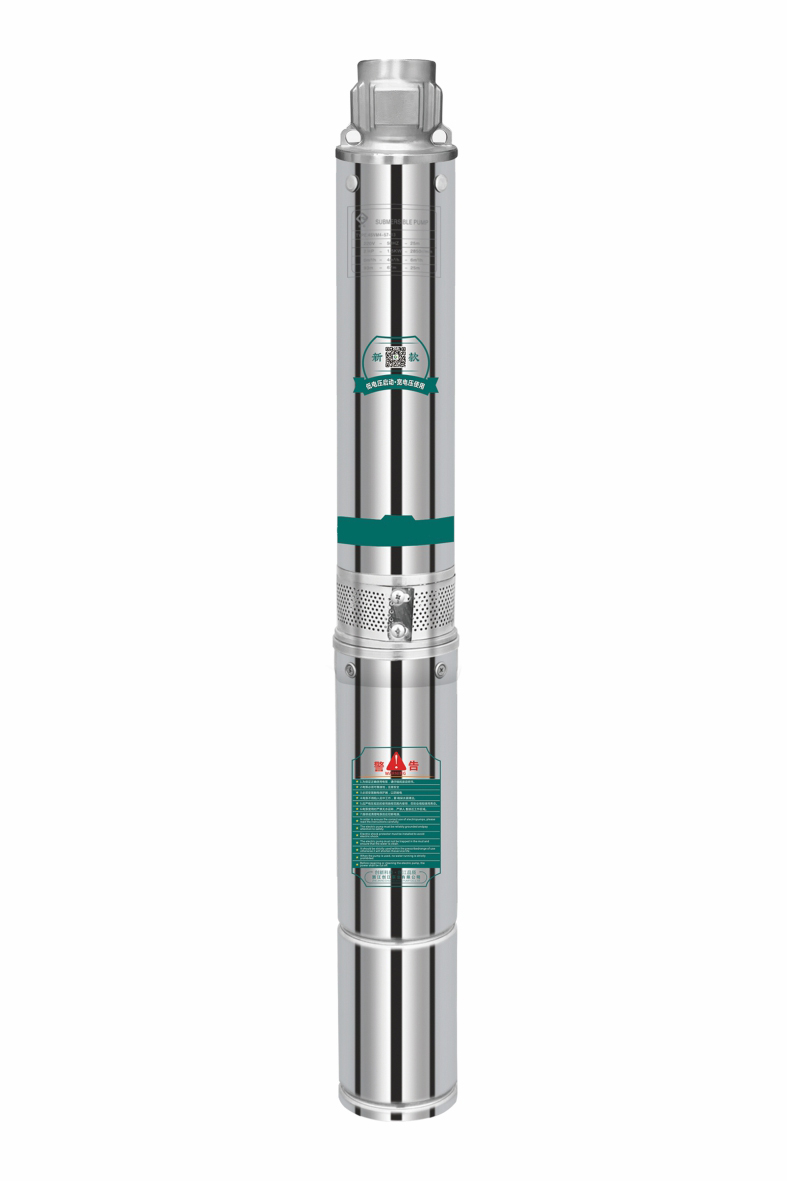

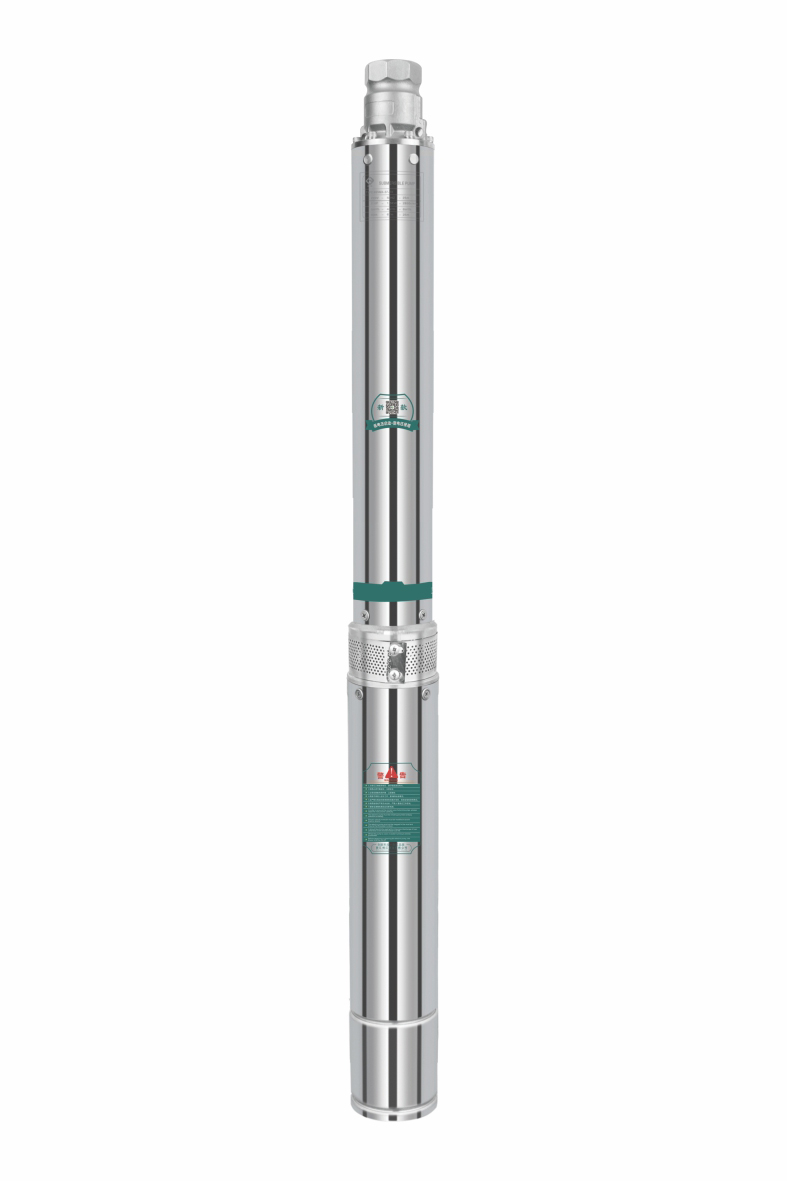

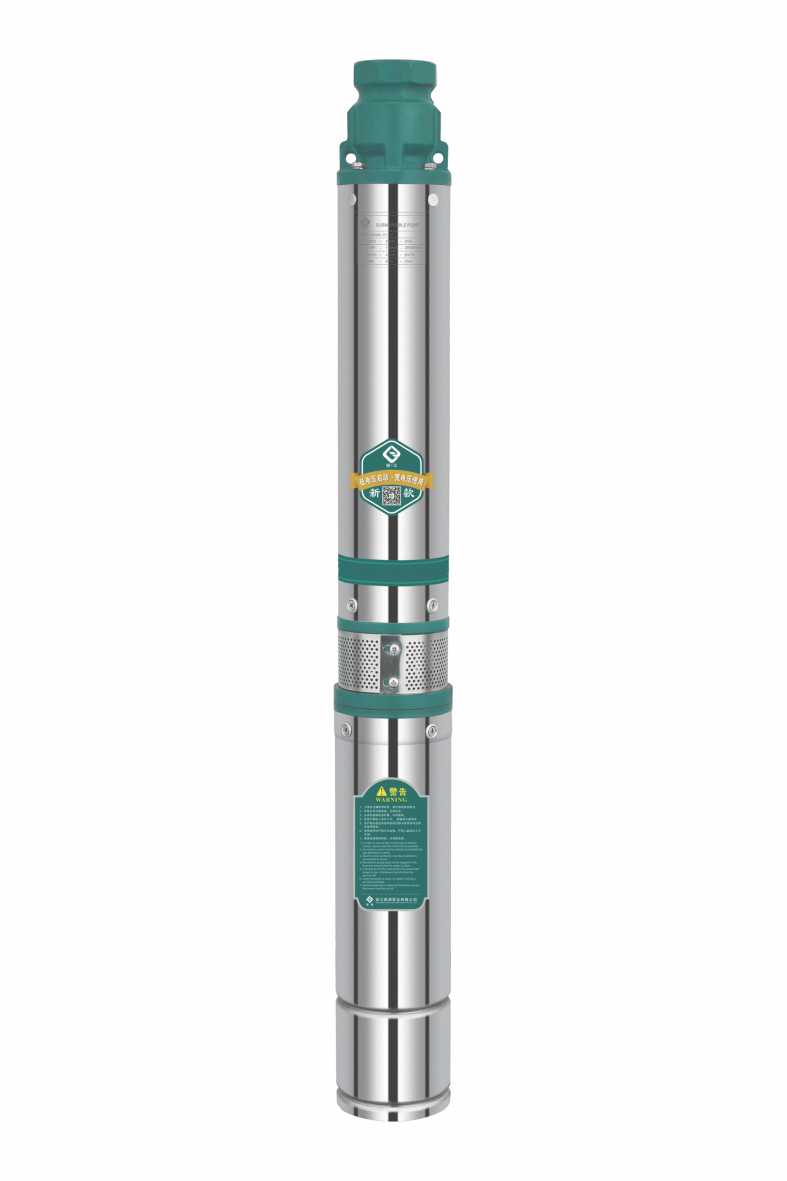

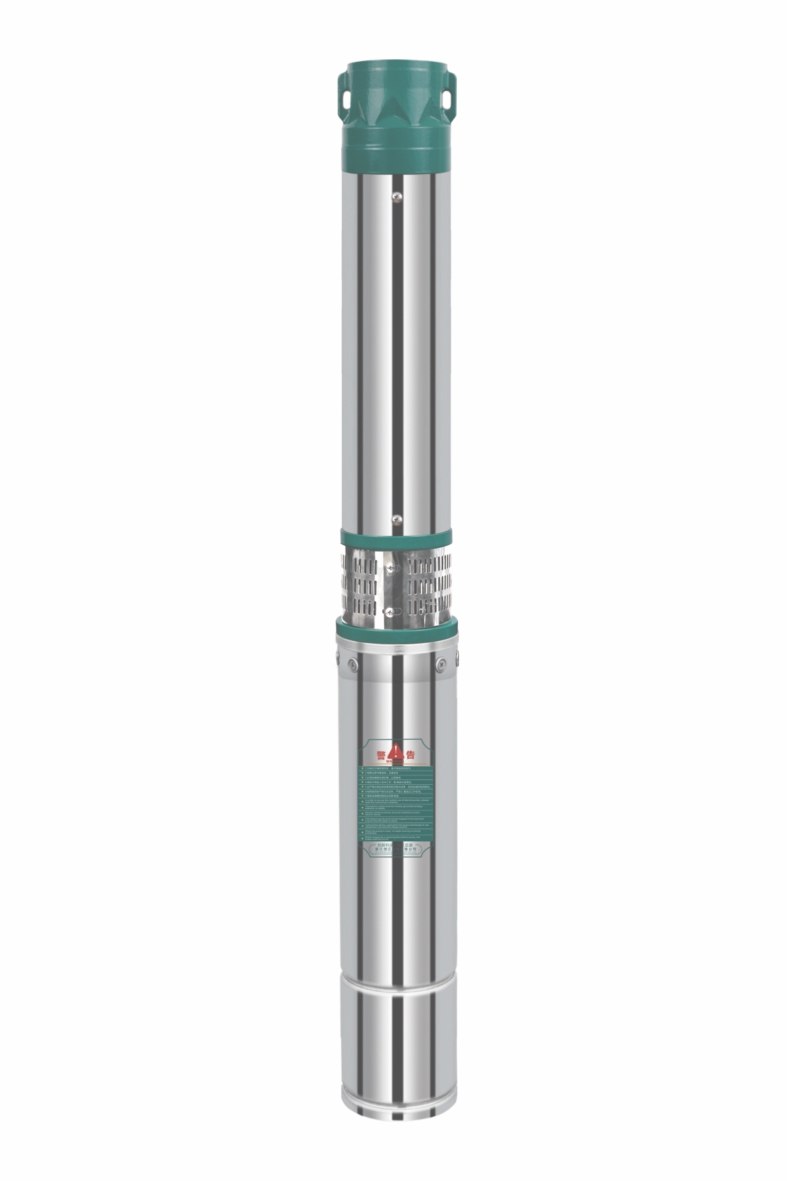

Stainless steel submersible deep well pumps high head deep

Application Scenarios

1.Deep Well Water Intake for Civil and Municipal Projects

1.Tap water extraction from deep wells for urban residential communities and centralized deep well water supply projects in villages and towns

2.Year-round water intake and supply for hotels, mountain resorts and scenic spots with private deep wells

3.Municipal groundwater extraction in old urban areas and pressure replenishment for pipeline networks

2.Agricultural Irrigation

1.Large-scale irrigation for farmlands and watering for orchards and gardens with deep well water

2.Circulating water supply for greenhouses and daily water extraction for livestock farms

3.Industrial Water Intake

1.Production water and circulating cooling water extraction from self-owned deep wells of factories

2.Underground mine drainage and deep well pumping for foundation pits

3.Extraction and delivery of high-temperature geothermal hot spring water

4.Special Corrosive Water Conditions

1.Water intake from seawater wells and saline-alkali wells in coastal areas

2.Transportation of slightly corrosive groundwater and well water with high mineralization degree

Full Range of Material Selection

1.Materials for Core Flow-passing Components

1.SUS304 Stainless Steel (Standard General Model)

Impellers, diffuser casings, pump shafts and discharge sections are all made of SUS304 stainless steel, complying with sanitary standards for domestic drinking water. It is suitable for ordinary clean underground water and domestic tap water from deep wells, widely adopted in domestic agriculture, forestry and municipal projects.

2.Corrosion-resistant SUS316L Stainless Steel

With molybdenum element added to resist corrosion caused by chloride ions, saline-alkali well water and coastal seawater wells. It is specially designed for saltwater wells on islands and coastal zones.

3.Economical Cast Iron Deep Well Pump

The cast iron impeller is coated with anti-corrosion layer, which is only applicable to clean non-corrosive ordinary well water and extensive agricultural irrigation.

4.Duplex Stainless Steel 2205

Specially used for deep wells with high mineralization, severe saline-alkali environment and seawater deep wells.

2.Auxiliary Structural Materials

– Submersible Motor: Fully flooded wet-type water-filled motor with pure copper windings

– Mechanical Seal: Hard alloy mechanical seal with excellent resistance to silt abrasion

– External Discharge Pipe: Two options available: SUS304 stainless steel pipe and galvanized steel pipe

– Cable: Special submersible cable with waterproof and oil-proof properties, anti-aging for long-term underwater immersion

power、1KW-160KW

flow、2m3/h-200m3/h

head、10m-400m

Full Range of Customization Options

1.Custmization for Structure & Well Adaptation

1.The number of pump impeller stages can be freely increased or decreased according to actual well depth to flexibly adjust the delivery head.

2.Custom non-standard sizes for deep wells with narrow bores and large-diameter water wells.

3.Multiple outlet types available: flange connection, threaded pipe connection and quick coupling connection.

2.Customization for Special Water Quality & Operating Conditions

1.High-temperature resistant geothermal deep well pumps (for hot spring water at 70℃~95℃).

2.Custom thickened wear-resistant impellers for high-sediment well water to prevent silt blockage.

3.Custom pumps made of SUS316L and duplex stainless steel to resist corrosion from seawater and saline-alkali water.

4.Submersible explosion-proof deep well pumps for flammable and explosive environments in oil and gas mines.

3.Complete Supporting Intelligent Control Systems

1.Fully automatic alternating control cabinets configured for one-working-one-standby or two-working-one-standby modes.

2.Multiple protection functions against dry running due to water shortage, overload, electric leakage, overpressure and silt clogging.

3.4G IoT remote monitoring: real-time remote viewing of downhole water level, operating current and pressure via mobile phones, with automatic fault alarm push notifications.

4.Complete variable-frequency constant-pressure water supply units for stable and steady outlet pressure.

4.Non-standard Customization for Overseas Export Business

1.Custom motors complying with IEC/NEMA international standards, adaptable to various national voltages and frequencies worldwide.

2.ANSI standard American flanges and European standard pipeline connectors.

3.Complete sets of overseas safety certifications configured for the whole pump unit.

Working Principle
1. The entire pump unit is submerged in deep well water. Once powered on, the submersible motor drives internal multi-stage impellers to rotate at high speed.
2. Spinning impellers apply mechanical work to well water. Under centrifugal force, water gains kinetic energy and hydraulic pressure, with pressure boosted sequentially through each impeller stage.
3. Pressurized water converges through the pump’s internal flow channels and is delivered upward to ground pipelines or storage facilities via riser pipes.
4. The matched electric control system enables automatic startup or shutdown based on water level and pressure feedback signals. It will cut off power automatically under water shortage or overload conditions to avoid motor burnout caused by dry running.
